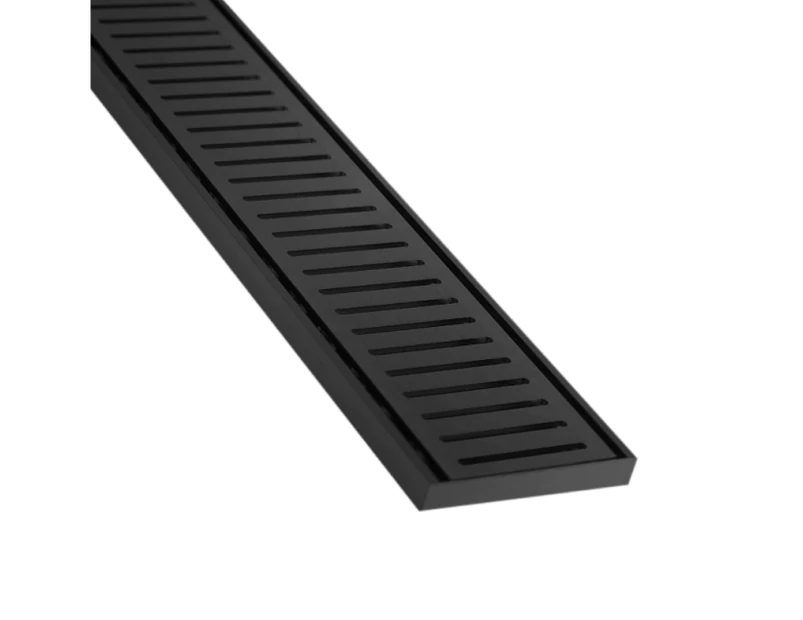

300mm Lauxes Midnight Shower Grate Drain Floor Waste Aluminium Next Generation 14 Size cuttable Black

Lauxes Floor Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor and outdoor wet area. With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces. Specifications: Size (mm): Cutting Length x 100W x 14D Waste Sizes Select : 40/50/72/80mm Color: Black Rust proof Lightweight Top grate easily removed for cleaning Can be cut to desired length No water tracking No Bedding Required No major plumbing involved as waste outlet can be positioned anywhere along the bottom tray Perfect use for indoor or outdoor applications 3m lengths available (ability to extend further using Lauxes joiners, extra order) Thick as tile and glue UV stable Package Contents: 1 x Floor Drain 1 x Waste 1 x end cap (pairs) Cutting & Assembly Instructions: For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet. 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole NOTE:This guarantee does not provide coverage of repairs necessitated by normal wear, misuse, accidental damage or as a result from changes in temperature.
