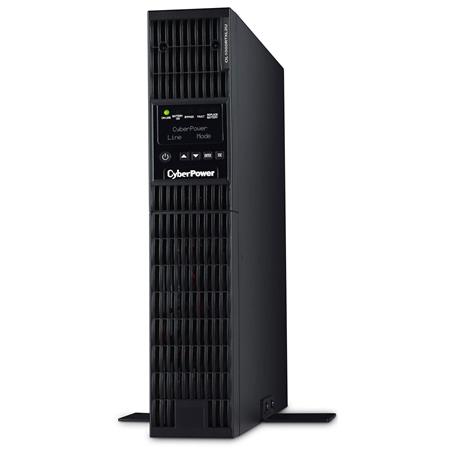

CyberPower OL1000RTXL2UN 1000VA/900W Smart App Online Rack/Tower UPS, 8x NEMA 5-15R

About CyberPower OL1000RTXL2UN The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode. The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. Double-Conversion Topology Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a zero millisecond transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices. Sine Wave Output Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves. PowerPanel Business Edition Software Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed. RMCARD205 Is a full-featured network management card. It enables remote management via a standard web browser, command line interface (CLI), or network management system (NMS) connection. LCD Control Panel Displays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed. Extended Battery Module (EBM) Extends runtime by adding up to 10 EBMs. Fast Charge Technology Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within 4 hours regardless of the number of EBMs. Smart Battery Management (SBM) Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process. GreenPower UPS ECO Mode Improves UPS efficiency up to 94% reducing electrical and cooling costs. Hot-Swappable Batteries Keep equipment running by eliminating downtime during UPS battery replacement. Upgradeable UPS firmware Manages the unit’s features and functions. Critical & Non-Critical Load Banks Maximize the output of the UPS by setting non-critical loads to shut off allowing additional runtime for critical load outlets. Emergency Power Off (EPO) Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch. Generator Compatible Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power. Converter Mode Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel. USB & Serial Connectivity Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port. EMI/RFI Filters Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment. Data Line Surge Protection Prevents power surges that travel through telephone and Ethernet lines from causing damage to your equipment Audible Alarms Identify when the model is running on battery power, overloaded, or has a low battery. Resettable Circuit Breaker Interrupts an electric current in a circuit when the current becomes too high. LED Status Lights Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery. Rack/Tower Versatility Allows for horizontal rack or vertical tower installation. Features Extendable LCD Control Panel Often a UPS is installed in a hard-to-reach area, such as a crowded IT closet, the bottom of a rack, or on the floor. A removable LCD control panel allows for easy access and can be placed up to ten feet away from the UPS when connected by a DB26 cable (sold separately). With an RMCARD205 installed, the LCD control panel will display and allow configuration of IP address settings. Menu Functions UPS Status displays vital information about the UPS. There are variable status types, including input and output voltage, battery information, runtime estimates, load data, and more. LCD Settings Configuration offers customization of the UPS with multiple specific operation parameters including output voltage, sync frequency, alarm settings, and more. Event Log allows for recording of UPS events with or without PowerPanel Business Edition management software. Multi-Language (select models) provides options to display text in English, Spanish, French, or German. Disable Audible Alarms turns off audible alarms, as needed. Manual Battery Test enables the user to run a UPS system test to ensure proper operation. Higher Capacity UPS for Longer Runtimes To determine the size of the UPS that you need, identify the total power load (measure in VA/Watts) of the connected equipment, along with the amount of runtime required (in minutes). Also, think about any equipment that might be connected to the UPS in the future, which could affect the calculations for load and runtime. Estimating expected UPS runtimes can be challenging, particularly when the consistency of the utility power is not well known. Selecting a UPS with a load capacity 30-35% above the required power load offers the advantage of longer runtimes. This can lower the risk of overloading the UPS and causing an unnecessary UPS shutdown. Although the initial outlay of a UPS increases with its size because of the higher capacity required for components, long-term operating costs typically decrease. When a UPS operates below maximum capacity, it reduces the stress on components. Sizing a UPS to run loads significantly lower than its capacity also increases spare capacity for future growth, along with extending runtimes. Efficient Remote Management The Smart App Series offers full-featured network UPS management capabilities with the PowerPanel Business Edition software and an optional SNMP network management card. These remote management tools enable centralized power management, monitoring, control, and configuration. They also provide for safe shutdown of connected servers, workstations, and other devices via a standard Web browser or network management system (NMS). Safe Shutdown The PowerPanel Business Edition software, included with every Smart App Sinewave UPS, enables an administrator to remotely manage each aspect of the UPS and facilitate the orderly automatic shutdown of connected equipment in the event of an extended power outage. This software also provides comprehensive network power management for corporate servers and critical workstations supported by the UPS, such as application/operating system shutdown, event logging, reporting, alerts and notifications. Programmable Outlet Control Smart App UPS systems allow programming of critical outlets and non-critical outlets, giving administrators the ability to prioritize outlets and increase battery backup runtimes for the most critical equipment during extended power outages. Programmable outlet control also gives an administrator the option to delay-start non-critical outlets, permitting the internal batteries to fully recharge more quickly. This feature is vital to data centers where seamless, uninterrupted equipment bootup is a necessity. Typical Applications Network and Storage Devices Edge Closets PBX and VoIP Installations Corporate and Enterprise Servers Product Information provided by the Manufacturer Why Do You Need a UPS System? Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages. Corporate & Enterprise Servers Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions. PBX and VoIP Installations Keep your communication lines open and running during power outages. Product Comparison How long will the UPS power my systems after the power goes out? Can this UPS model be monitored? Can this UPS be managed remotely? Does this come with rackmount hardware? Can the UPS be used in conjunction with a generator? Documents Proposition 65 Disclaimer: This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. CyberPower OL1000RTXL2UN Features Double-Conversion Topology Sine Wave Output PowerPanel Business Edition Software LCD Control Panel Extended Battery Module (EBM) Fast Charge Technology Smart Battery Management (SBM) GreenPower UPS ECO Mode Hot-Swappable Batteries Upgradeable UPS firmware Critical & Non-Critical Load Banks Emergency Power Off (EPO) Generator Compatible Converter Mode USB & Serial Connectivity EMI/RFI Filters Data Line Surge Protection Audible Alarms Resettable Circuit Breaker LED Status Lights Rack/Tower Versatility
