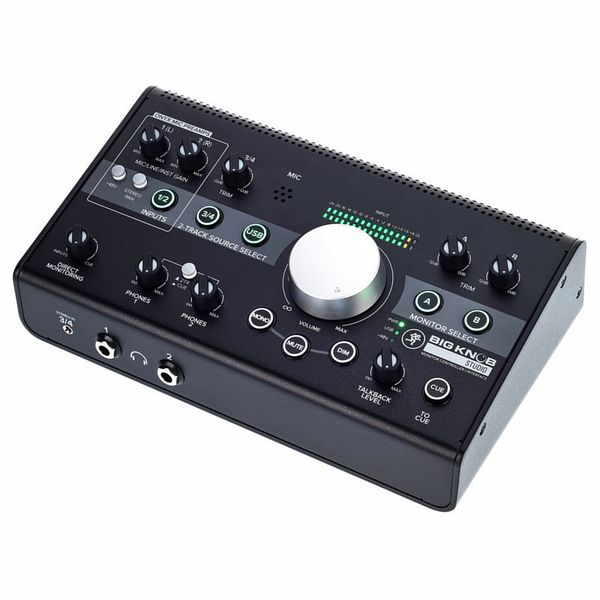

Mackie Big Knob Studio

Active Monitor Controller For up to 2 monitor pairs and 3 stereo sources 2×2 USB audio interface 24 bit / 96 kHz Large volume control Switches for mute, dim, mono, monitor and signal source Independent trim for all sources and monitor outputs Cue mix function Integrated talkback microphone 16-segment LED metering +48 V phantom power Steel housing iOS support with optional Lightning to USB 3.0 camera adapter for connection to iPad and iPhone (adapter not included) For Mac and PC Includes Tracktion waveform recording software Connections: 2 Microphone/line XLR/jack 6.3 mm combo inputs 2 Line inputs 6.3 mm jack balanced 2 Track connections 6.3 mm jack (L/R) 2 Stereo monitor outputs 6.3 mm jack 2 Stereo headphone outputs 6.3 mm jack 1 Stereo line input 3.5 mm mini jack USB Power supply connection 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since September 2017 Item number 407250 Sales Unit 1 piece(s) Recording / Playback Channels 2×2 Number of Mic Inputs 2 Number of Line Inputs 2 Number of Line Outs 2 Headphone Outs 2 Phantom power Yes Number of S/PDIF Connectors 0 Number of ADAT Connectors 0 Numer of AES/EBU Connectors 0 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI interface No Word Clock No Max. sample rate (kHz) 96 kHz Max. resolution in bit 24 bit USB Bus-Powered No Incl. power supply Yes USB Version 2.0 Width in mm 251 mm Depth in mm 163 mm Height in mm 81 mm Connection Format USB port Type B Show more
