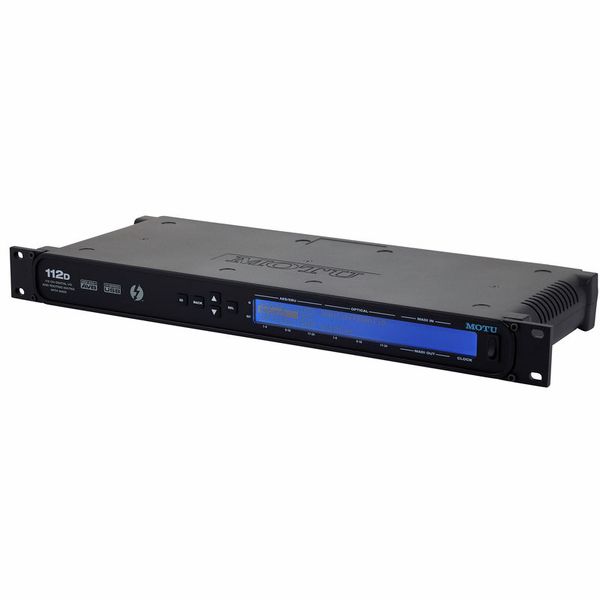

MOTU 112D AVB

Thunderbolt-, AVB- and USB Audio Interface With Routing-Matrix 112 Channels of digital inputs and outputs: 24 channels of AES / EBU, 24 ADAT channels and 64 channels MADI can be used simultaneously Supported sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz 48-Channel digital mixer with EQ and compressor in each channel (32-bit floating point, on-board DSP) Remote control via Web App Control (Mac OS, Linux, Android, Windows) AVB Ethernet functionality LCD Display Internal power adapter Body: 19″ / 1 U Connections: Thunderbolt TP Network USB 2.0 (USB 3.0 / iOS compatible) 6 Optical ADAT In- and Outputs MADI In- and Output BNC 3 SUB D-25 AES/EBU Word clock input and output 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since March 2015 Item number 357620 Sales Unit 1 piece(s) Recording / Playback Channels 64×64 Number of Mic Inputs 0 Number of Line Inputs 0 Number of Line Outs 0 Headphone Outs 0 Phantom power No Number of S/PDIF Connectors 0 Number of ADAT Connectors 6 Numer of AES/EBU Connectors 12 Number of MADI Connectors 1 Ethernet 1 Other Connectors No MIDI interface No Word Clock 1xIn, 1xOut Max. sample rate (kHz) 192 kHz Max. resolution in bit 24 bit USB Bus-Powered No Incl. power supply Yes USB Version 2.0 Width in mm 483 mm Depth in mm 0 mm Height in mm 44 mm Connection Format USB port Type B Show more
