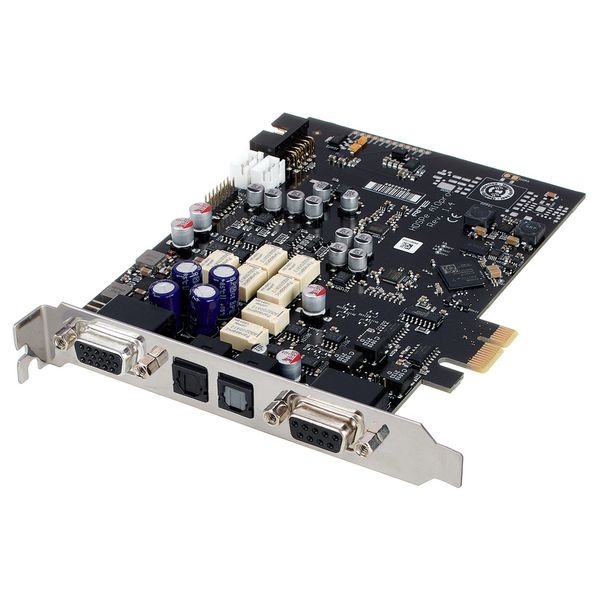

RME HDSPe AIO Pro

30-Channel PCI Express Audio Interface 192 kHz / 24 Bit ADI-2 Pro converter AK5572 and 2 x AK4490 The entire analogue input range uses the circuit design of the ADI-2 Pro (+24 / +19 / +13 / +4 dBu) Mute relay also for XLR/RCA outputs to avoid noise when switching on the computer Reference level for the balanced outputs: +24 / +19 / +13 / +4 dBu Reference level for the unbalanced outputs: +19 / +13 / +4 / -2 dBu SteadyClock FS Headphone output level +19 dBu / +7 dBu (high / low power) 2x Standard D-Sub for breakout cable with 2x line input RCA, 2x line output RCA Stereo headphone jack 6.3 mm jack AES / EBU SPDIF coaxial MIDI input and output ADAT / SPDIF optical input and output Word Clock Module (WCM) and breakout cable with balanced XLR connectors optionally available (not included) Note: No support for optional AI4S-192/AO4S-192 extensions of the previous model RME HDSPe AIO! 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since September 2020 Item number 500503 Sales Unit 1 piece(s) Converter 24 bit/192 kHz Microphone Inputs 0 Phantom power No Number of instrument inputs 0 Line Inputs 2 Digital Inputs ADAT, AES, S/PDIF MIDI interface Yes SYNC Yes Analogue Outputs 2 Digital Outputs ADAT, AES, S/PDIF Headphone jack Yes Zero latency monitoring Yes
