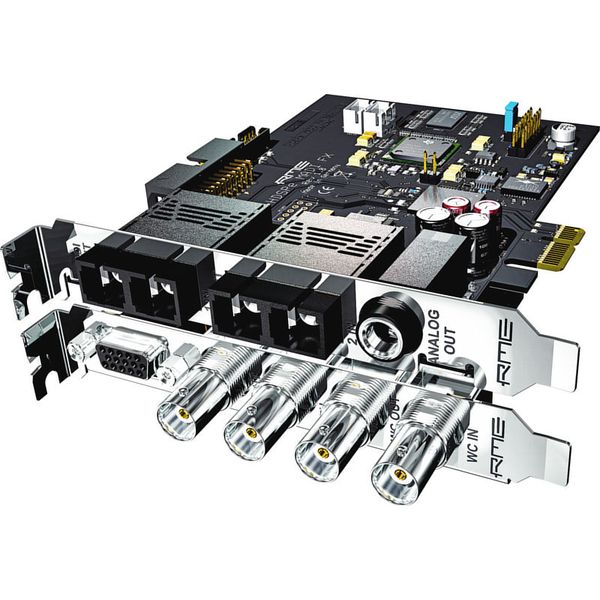

RME HDSPe Madi FX

PCI Express sound card MADI: 194 input and 194 output channels Analogue output: 2 channels (6.3 mm stereo jack, monitoring or headphones) 4096-channel mono matrix router MADI optical <> coaxial converter functionality AES / EBU interface for direct integration of AD / DA devices Extremely low latencies Sample frequencies up to 192 kHz Includes SteadyClock for maximum jitter suppression Including DIGICheck analysis and metering tool (EBU R128 compatible) Including TotalMix FX The variable real-time mixer and signal router with 42 bits internal Resolution and integrated onboard DSP effects – Latency-free monitoring (EQ, Dynamics, AutoSet and Reverb / Echo) 2x MADI I / O optically 1x MADI I / O coaxial 1x AES / EBU I / O 1x stereo analog out 1x wordclock I / O 1x MIDI I / O over 5-pin DIN 3x MIDI I / O via MADI 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since August 2012 Item number 280212 Sales Unit 1 piece(s) Converter 24 bit/192 kHz Microphone Inputs 0 Phantom power No Number of instrument inputs 0 Line Inputs 0 Digital Inputs MADI MIDI interface Yes SYNC Yes Analogue Outputs 1 Digital Outputs MADI Headphone jack Yes Zero latency monitoring Yes
