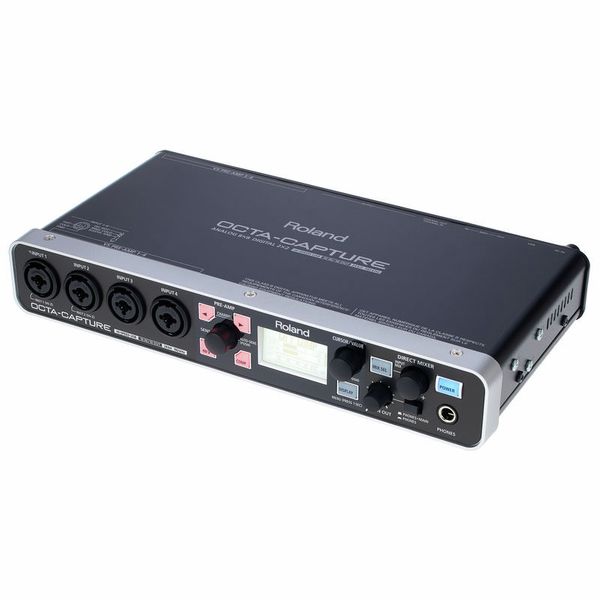

Roland UA-1010 Octa-Capture

USB Audio Interface 24-bit / 44.1 / 48/96 kHz recording: 12 channels, playback: 10 channels 192 kHz Recording: 4 channels, playback: 4 channels Eight high-quality microphone preamps with phantom power Connections: In 1 – 8 (XLR / Jack), XLR (Balanced, Phantom Power +48 V), Jack (balanced), S / PDIF Coaxial In / Out, Headphone (Stereo Jack), Out 1 – 8 Jack (Balanced), MIDI In / Out, USB AUTO-SENS function for automatically setting the optimal input levels 1 Headphone output Software-controlled direct mixer for individual monitor mixes Supports all major DAW platforms on Mac and PC including OSX 10.6 and Windows 7 via ASIO 2.0 / WDM (Windows) and Core Audio (Mac) drivers Two OCTA-CAPTURE cascadable (24-in / 20-out audio interface) The OCTA CAPTURE UA-1010 can also be used as a stand-alone device Dimensions: 284 x 158 x 50 mm Weight: 1.3 kg Includes rackmount bracket, power supply and USB cable 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since October 2010 Item number 253654 Sales Unit 1 piece(s) Recording / Playback Channels 10×10 Number of Mic Inputs 8 Number of Line Inputs 8 Number of Line Outs 8 Headphone Outs 1 Phantom power Yes Number of S/PDIF Connectors 1 Number of ADAT Connectors 0 Numer of AES/EBU Connectors 0 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI interface Yes Word Clock No Max. sample rate (kHz) 96 kHz Max. resolution in bit 24 bit USB Bus-Powered No Incl. power supply Yes USB Version 2.0 Width in mm 284 mm Depth in mm 158 mm Height in mm 50 mm Connection Format USB port Type B Show more
