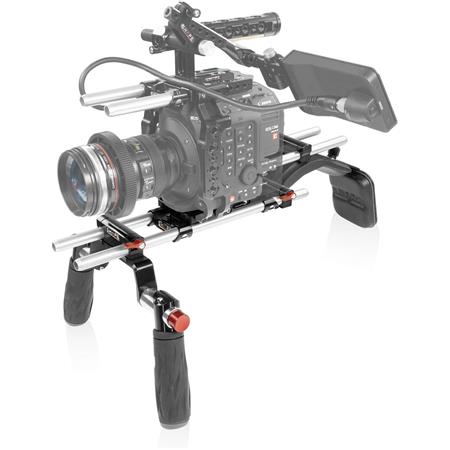

Shape Offset Rig for Canon C500 Mark II Camera

About Shape Offset Rig Professional video stabilization with 2 handles and an offset configuration featuring quick release handgrips with SHAPE’s patented Push-button technology. Canon C500 Mark II 15mm lightweight baseplate (B15C52) The lightweight baseplate with 15 mm rod system is designed to match the Canon EOS C500 Mark II optical center. It features two attachment points (1/4-20 and 3/8-16) for securely mounting the Canon EOS C500 Mark II body. The baseplate also comes with a pair of 15 mm rods that are 12″ long through the length of the baseplate. The bottom of the plate feature several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod. Canon C500 Mark II adapter plate (C52AP) The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base. Offset rail 15 mm 2-rod bloc (BMOFBRAC) The SHAPE 15 mm Off-Set Bracket is designed to fit offset configuration and let you insert 15 mm rods. Quick handle rod bloc (HAND5) The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360 Degree . You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. Composite mini shoulder pad (SHPAD3) The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently. Back pad (PAD1) The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2″ vertically and 360 Degree horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights. 15 mm 12″ rods (15TUBE12) This pair of SHAPE 15 mm Aluminum Rods (12″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. 15 mm 10″ rods (15TUBE10) This pair of SHAPE 15 mm Aluminum Rods (10″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. Shape Offset Rig Features Offset configuration compatible with Canon EOS C500 Mark II Offset rail attach to quick release baseplate Quick release baseplate with 15 mm rods 12″ and 10″ Quick release handgrips with Push-button and 15 mm rod bloc Shoulder pad and back pad, padded for superior comfort COMPATIBILITY Designed for use with: Canon Camcorder
