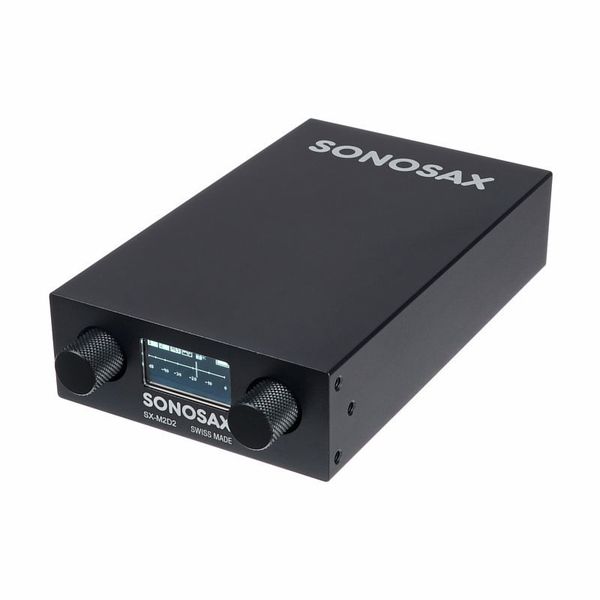

Sonosax SX-M2D2

Portable 2-channel microphone preamplifier and USB audio interface 2 Balanced inputs for microphone and line signals Per input: max. +72 dB gain Switchable + 20dB pre-gain Switchable phantom power: +48 V Switchable high pass filter (60 – 300 Hz) and phase rotation Dynamic range: 135 dB (A-weighted) THD (20 Hz – 20 kHz): <0.001% Frequency range: 20 - 80,000 Hz Internal 6-channel mixer for analog inputs, AES inputs and USB audio 2-Channel compressor / limiter with 4 memory locations Free routing of all inputs and outputs for flexible adaptation to every listening and recording situation (6 user presets can be saved) Integrated test tone generator Class-Compiant USB 2.0 audio interface 2 x 24 bit dual ADC per channel Sampling rate: 44.1 kHz - 192 kHz Level display of all inputs and outputs via OLED display Operation via two push encoders Power supply via 4-pin Hirose connector, USB C or exchangeable Li-Ion battery (3.6V, 65mm, type 18650) Battery can be charged in the device via Hirose or USB power supply 2 Mic / line inputs: TA-3M AES input: TA-3M AES output: TA-3M Stereo line output: TA-3M Stereo headphone output: 3.5mm TRS 9-18V DC input: 4-pin Hirose USB Power (USB C) and USB Audio (USB C) Solid aluminium housing Dimensions (W x H x D): 74 x 28.5 x 130 mm Weight (including battery): 336 g Includes USB C cable, Li-Ion battery and transport case Suitable bag: Art.485319 (not included in delivery) Suitable accessories (not included in the scope of delivery): Mic / line input cable: Art.277557 Stereo line output cable: Art.493820 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since May 2020 Item number 488473 Sales Unit 1 piece(s) Recording / Playback Channels 2x2 Number of Mic Inputs 2 Number of Line Inputs 2 Number of Line Outs 2 Headphone Outs 1 Phantom power Yes Number of S/PDIF Connectors 0 Number of ADAT Connectors 0 Numer of AES/EBU Connectors 1 Number of MADI Connectors 0 Ethernet 0 Other Connectors USB MIDI interface No Word Clock No Max. sample rate (kHz) 192 kHz Max. resolution in bit 24 bit USB Bus-Powered Yes Incl. power supply No USB Version 2.0 Width in mm 74 mm Depth in mm 130 mm Height in mm 28,5 mm Connection Format 2x USB port Type C Show more
