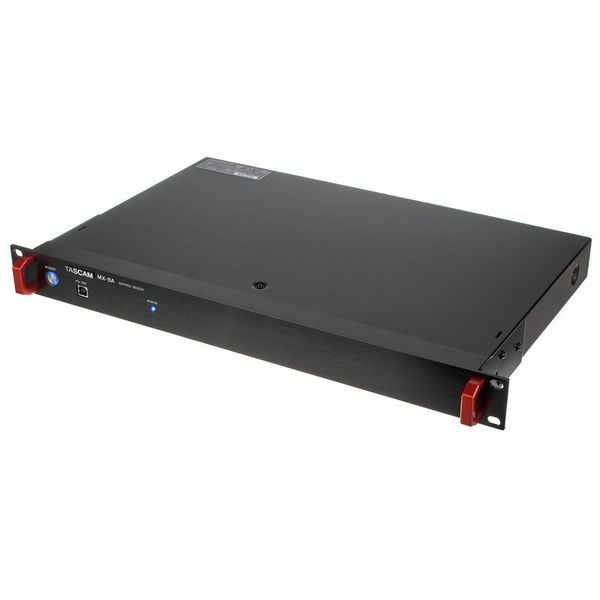

Tascam MX-8A

8-Channel Matrix Mixer and USB Audio Interface with DSP Processor 16/24 Bit / 44.1/48 kHz Controllable via Ethernet, RS-485 and RS-232C Controllable functions for input section: Phantom power on/off, polarity, sensitivity, input level, automatic level adjustment, 4-band EQ, mute, fader Controllable functions for mixer: Matrix mixer, ducking, noise compensation (ANC), routing Controllable functions for output section: 10-Band EQ, delay, mute, fader, limiter, polarity Up to 50 presets can be saved 8 Analogue microphone / line inputs 8 Analogue line outputs Inputs and outputs via balanced Euroblock connectors with 3.81 mm spacing USB 2.0 Pitch: 3.81 mm Build: 19″ / 1 U Dimensions (W x H x D): 483 x 45 x 304 mm Weight: 3 kg 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since November 2020 Item number 463750 Sales Unit 1 piece(s) Recording / Playback Channels 8×8 Number of Mic Inputs 8 Number of Line Inputs 8 Number of Line Outs 8 Headphone Outs 0 Phantom power Yes Number of S/PDIF Connectors 0 Number of ADAT Connectors 0 Numer of AES/EBU Connectors 0 Number of MADI Connectors 0 Ethernet 1 Other Connectors Euroblock MIDI interface No Word Clock 0 Max. sample rate (kHz) 48 kHz Max. resolution in bit 24 bit USB Bus-Powered No Incl. power supply Yes USB Version 2.0 Width in mm 483 mm Depth in mm 304 mm Height in mm 45 mm Connection Format USB port Type B Show more
