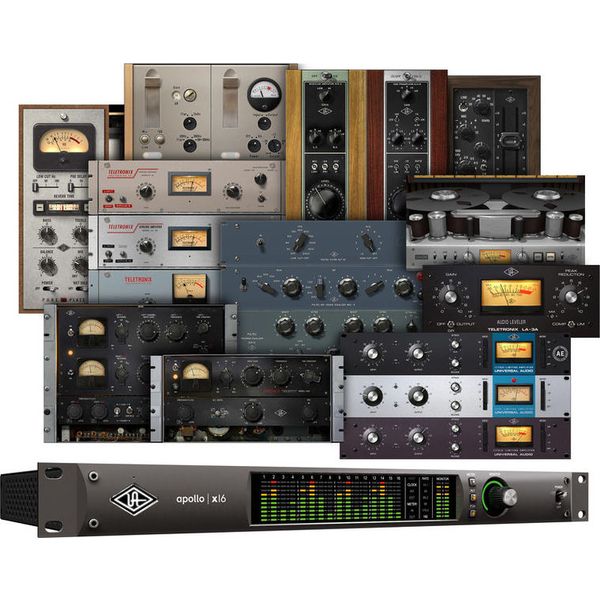

Universal Audio Apollo x16 Heritage Edition

18 x 20 Thunderbolt 3 Audio Interface Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included) Support of surround formats up to 7.1, with speaker calibration and downmix Dual crystal clocking for low-jitter environment and clean, artifact-free recordings and stable stereo imaging 24 bit / 192 kHz 6-Core SHARC DSP for internal UAD real-time processing 16 Line inputs: Sub-D25 2 Monitor outputs: 6.3 mm jack 16 Line outputs: Sub-D25 AES/EBU input and output BNC Word clock input and output 2 Thunderbolt 3 ports Switch for monitor switchover Function key can be assigned to Dim or Mono LED Meter Integrated talkback microphone Up to 4 Apollos with Thunderbolt cascading connection Support of surround formats up to 7.1, with speaker calibration and downmix Dual crystal clocking for low-jitter environment and clean, artifact-free recordings and stable stereo imaging For Mac/Windows Design: 19″ / 1U Includes external power supply and software bundle Rackmount Heritage Edition & Realtime Analog Classics Plus 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since December 2020 Item number 508065 Sales Unit 1 piece(s) Recording / Playback Channels 18×20 Number of Mic Inputs 0 Number of Line Inputs 16 Number of Instrument Inputs 0 Number of Line Outputs 18 Headphone Outs 0 Phantom Power No Number of S/PDIF Connectors 0 Number of ADAT Connectors 0 AES/EBU Connectors 1 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI Connectors No Word Clock 1xIn, 1xOut Max. Samplerate 192 kHz Max. Resolution in Bit 24 bit Bus-Powered No Incl. Power Supply Yes Windows Thunderbolt driver Yes Thunderbolt Version 3 Width in mm 483 mm Depth in mm 308 mm Height in mm 44 mm
