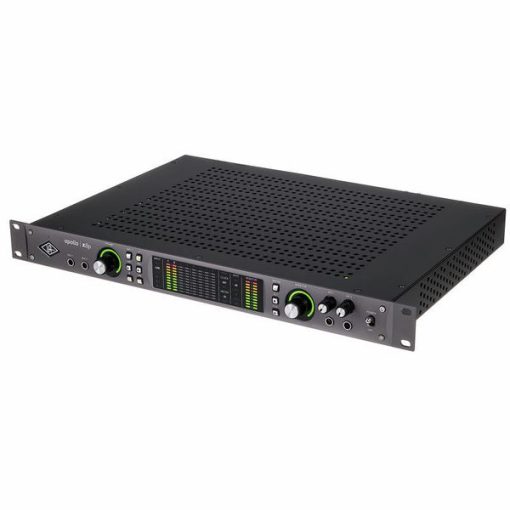

Universal Audio Apollo x8p

16×22 Thunderbolt 3 Audio Interface 24 Bit / 192 kHz Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included) Support for surround formats up to 7.1 with speaker calibration and downmix Dual crystal clocking for low-jitter environment and pure, artifact-free recording and stable stereo imaging 6-Core SHARC DSP for internal UAD real-time processing 8 Unison microphone amplifiers 8 Microphone/line combo inputs: XLR + 6.3 mm jack 2 Hi-Z inputs: 6.3 mm jack 8x Line inputs: Sub-D25 2 Monitor outputs: 6.3 mm jack 8x Line outputs: Sub-D25 2 ADAT inputs and outputs BNC Word clock input and output 2 Stereo headphone connections: 6.3 mm jack 2 Thunderbolt 3 sockets 48V Phantom power PAD Low cut Phase reverse Switch for monitor switching Dim or mono assignable function button LED meter Integrated talkback microphone Support for surround formats up to 7.1 with speaker calibration and downmix Dual crystal clocking for low-jitter environment and pure, artifact-free recording and stable stereo imaging For Mac / Windows Up to 4 Apollos cascadable with Thunderbolt connection Build: 19″ / 1 U Includes external power supply and Realtime Analog Classics Plus bundle 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since May 2022 Item number 446927 Sales Unit 1 piece(s) Recording / Playback Channels 16×22 Number of Mic Inputs 8 Number of Line Inputs 8 Number of Instrument Inputs 2 Number of Line Outputs 10 Headphone Outs 2 Phantom Power Yes Number of S/PDIF Connectors 0 Number of ADAT Connectors 2 AES/EBU Connectors 0 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI Connectors No Word Clock 1xIn, 1xOut Max. Samplerate 192 kHz Max. Resolution in Bit 24 bit Bus-Powered No Incl. Power Supply Yes Windows Thunderbolt driver Yes Thunderbolt Version 3 Width in mm 483 mm Depth in mm 308 mm Height in mm 44 mm
