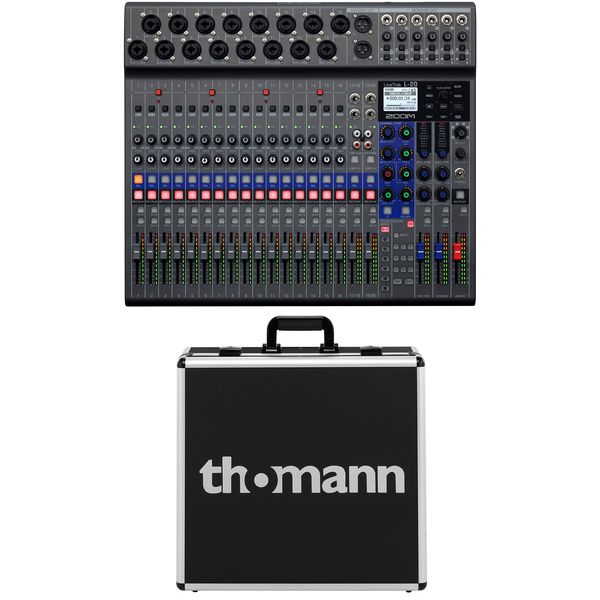

Zoom LiveTrak L-20 Case Bundle

Bundle offer comprising Zoom LiveTrak L-20 Combined Mixer, Audio Interface and Recorder 20 Discrete channels 16 Mono plus 2 stereo channels with XLR and 1/4″ phone jacks Simultaneous recording of 22 tracks Playback of 20 tracks USB audio interface with 22 inputs and 4 outputs Audio recording up to 24-bit / 96 kHz on SD storage media 48 V phantom power Hi-Z Connectors (channels 1-2) 26 dB Pad (channels 3 to 16) Compressor per channel with one knob (channels 1 to 16) Solo and mute buttons for each channel Low cut per channel between 40 – 600 Hz variably adjustable Sum outputs and six configurable monitor outputs Monitor outputs can be configured as headphone output or normal line-level output Additional separate headphone output Memory function for up to nine mixer scenes 20 Internal, editable chorus, delay and reverb effects Two effect buses Built-in talkback microphone Pre-record function Class-compliant operation (for iOS compatibility) Automatic start and stop recording possible Import and export of projects via the USB 2.0 interface Compatible functions for the ZOOM FS01 footswitch Dimensions (W x D x H): 445 x 388.4 x 82.6 mm Weight: 3.71 kg Includes power supply (AD-19), USB 2.0 cable and quick start guide Suitable protective cover: Article no. 514006 (not included) Optional case 514831 (not included) Thomann Case Zoom LiveTrak L-20 Transport Case Suitable for Zoom LiveTrak L-20 2 Metal locks Lockable 2 Metal hinges 1 Plastic case handle Interior with EVA Foam on the top cover Space for cables External dimensions: 507 x 467 x 144 mm Weight: 3.35 kg Colour: Black 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since January 2023 Item number 558546 Sales Unit 1 piece(s) Recording / Playback Channels 22×4 Number of Mic Inputs 16 Number of Line Inputs 16 Number of Line Outs 8 Headphone Outs 7 Phantom power Yes Number of S/PDIF Connectors 0 Number of ADAT Connectors 0 Numer of AES/EBU Connectors 0 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI interface No Word Clock No Max. sample rate (kHz) 96 kHz Max. resolution in bit 24 bit USB Bus-Powered No Incl. power supply Yes USB Version 2.0 Width in mm 445 mm Depth in mm 388,4 mm Height in mm 82,6 mm Connection Format USB port Type B, Type A Show more
