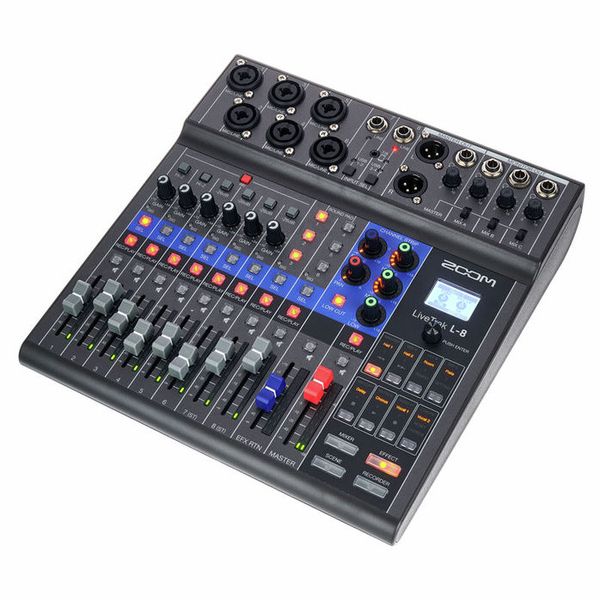

Zoom LiveTrak L-8

Compact Podcast Mixer, Audio Interface and Recorder 8-Channel mixer Channels 1-2 for microphone, line and instrument signals – XLR / TRS combo socket Channels 3-6 for microphone and line signals – XLR / TRS combo socket Channels 7-8 for line signals – 6.3 mm jack USB stereo playback and telephone playback – 3.5 mm TRRS Mix-minus function for preventing audio feedback from dial-in guests Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop 48 V Phantom power switchable Effects section with 8 different programs 6 Assignable sound pads for jingles, intros, outros and sound effects 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes Balanced stereo output (XLR) 7 Scene memory slots for mixes Battery operation possible (4x AA Mignon, not included in the delivery) Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz Integrated USB audio interface with 12 inputs and 4 outputs USB 2.0 System requirements: Windows 7 or later, macOS 10.12 or later Dimensions (W x D x H): 282 x 268 x 74 mm Weight: 1.56 kg Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter Suitable case: Art.502745 (not included in the delivery) Suitable case: Art.498148 (not included in the delivery) 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since December 2019 Item number 477037 Sales Unit 1 piece(s) Recording / Playback Channels 12×4 Number of Mic Inputs 6 Number of Line Inputs 8 Number of Line Outs 2 Headphone Outs 4 Phantom power Yes Number of S/PDIF Connectors 0 Number of ADAT Connectors 0 Numer of AES/EBU Connectors 0 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI interface No Word Clock No Max. sample rate (kHz) 96 kHz Max. resolution in bit 24 bit USB Bus-Powered Yes Incl. power supply Yes USB Version 2.0 Width in mm 282 mm Depth in mm 268 mm Height in mm 74 mm Connection Format USB port Micro B Show more
